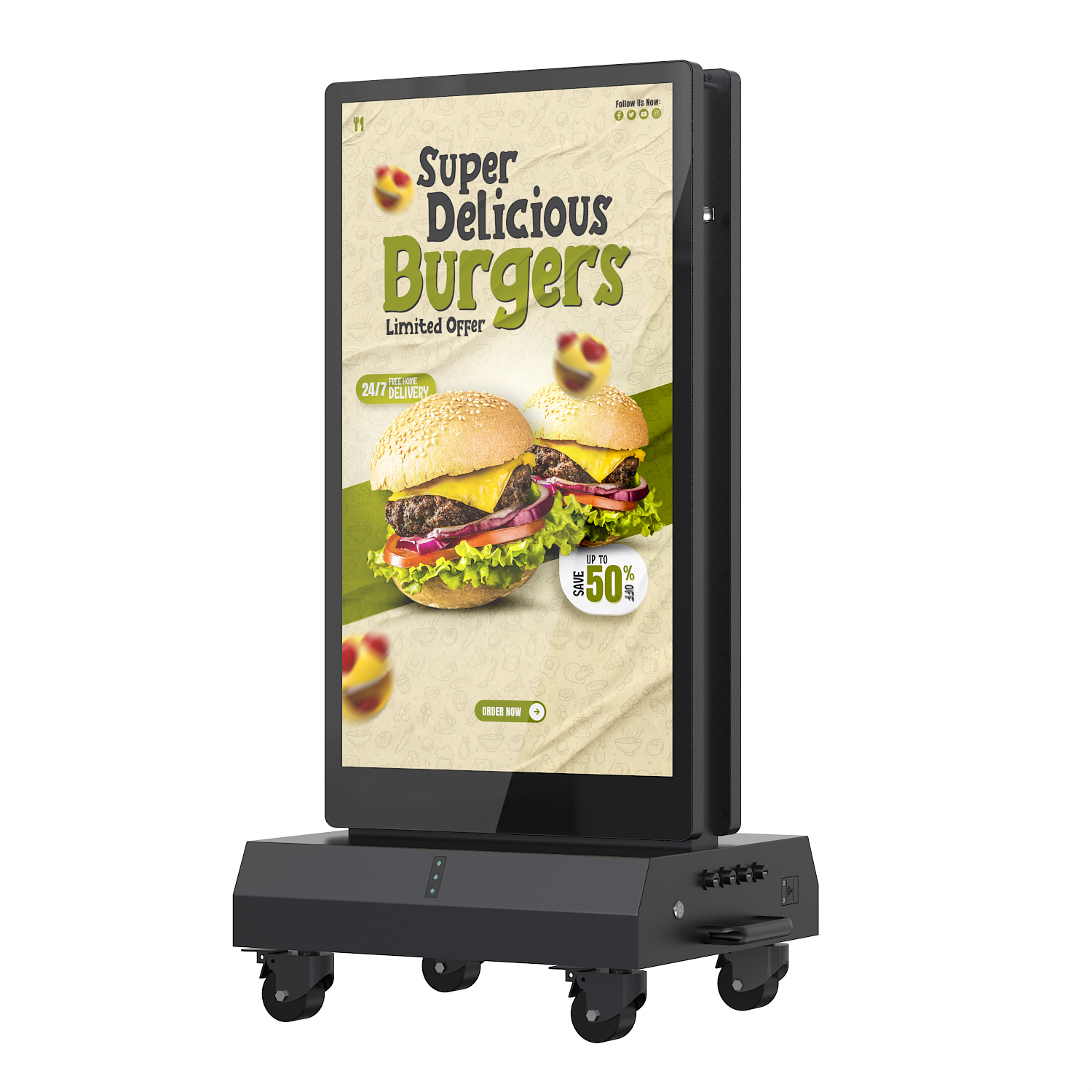

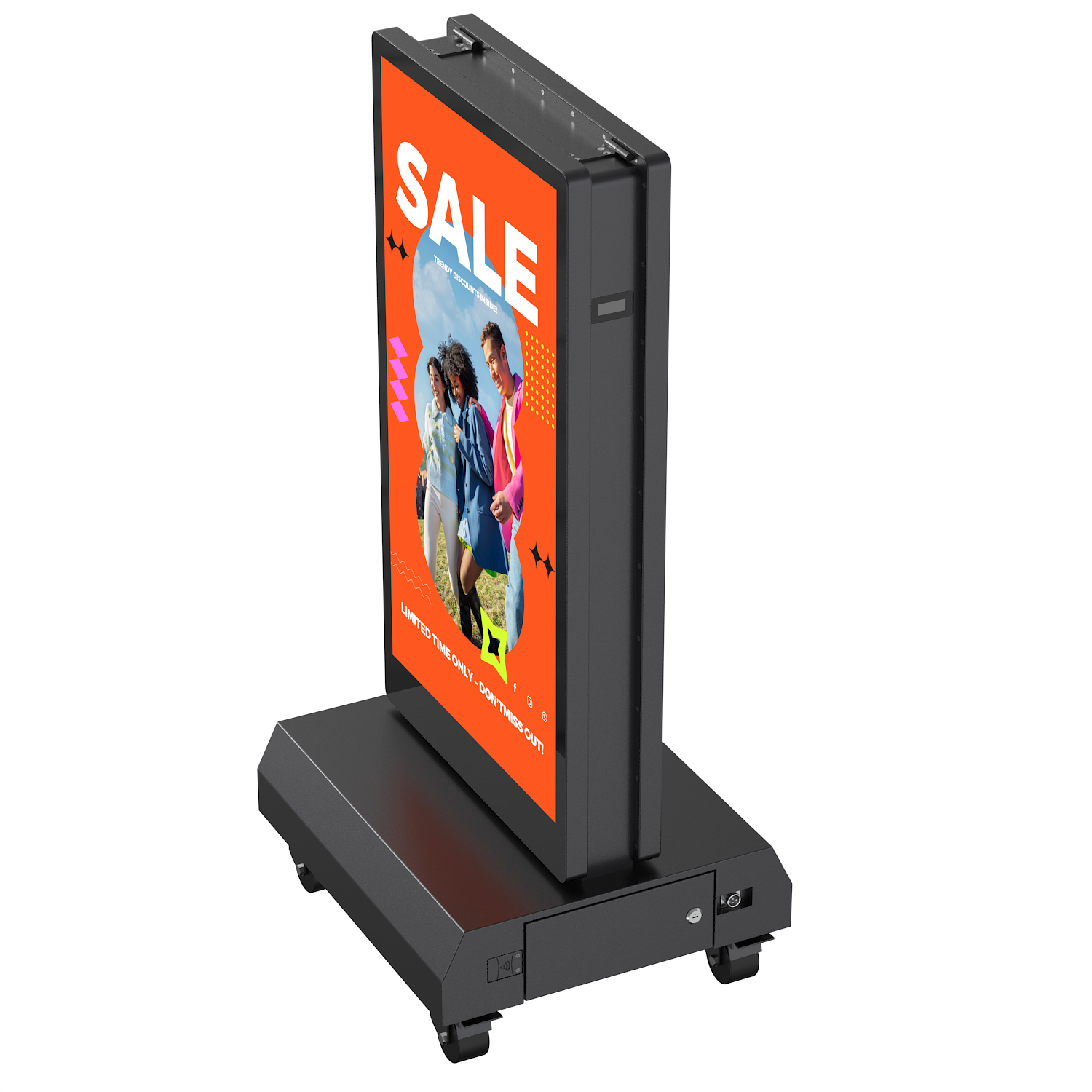

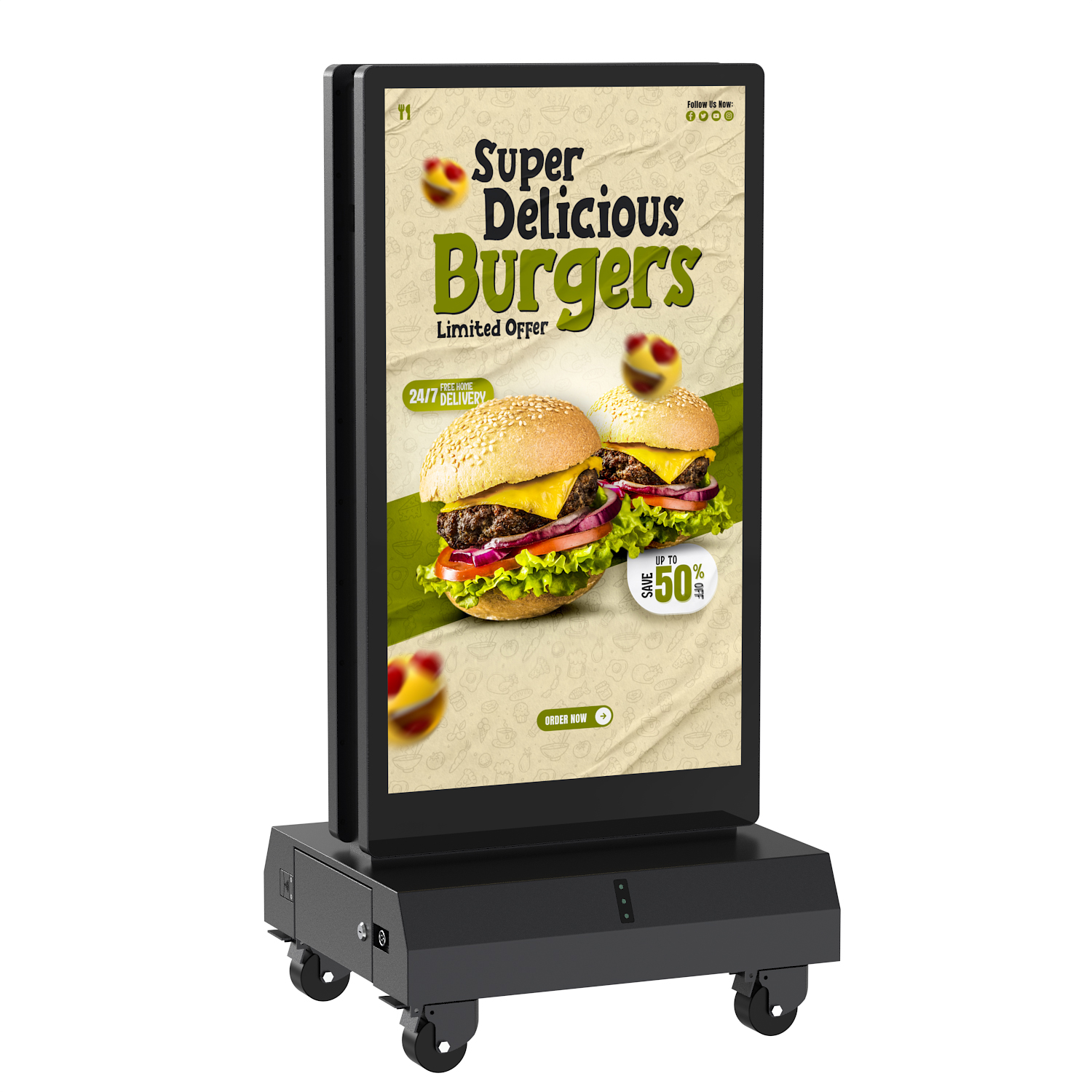

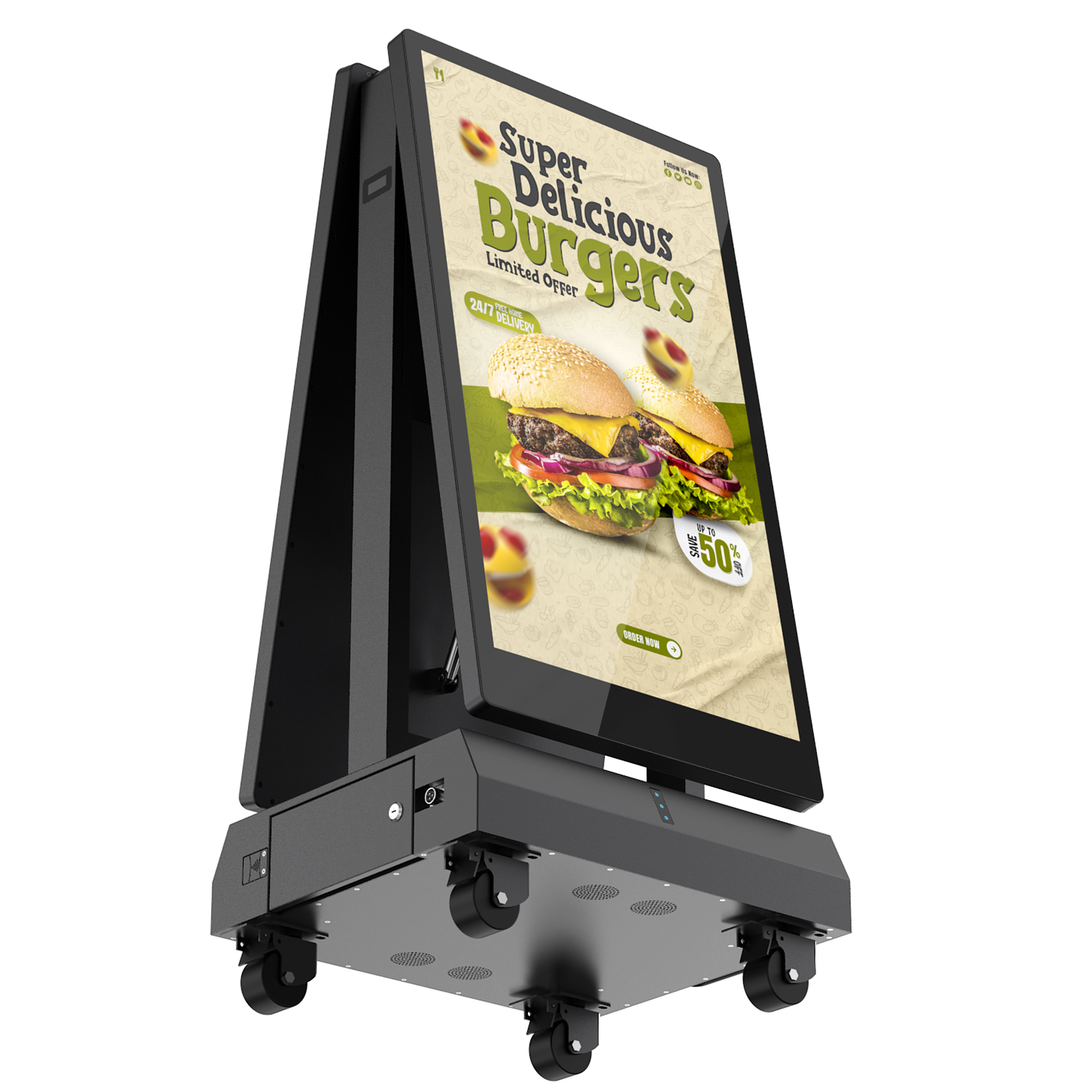

Double-sided Outdoor Electric Poster Screen
All-New Electric Tilt: One-click angle adjust, fits complex outdoor venues, convenient & flexible!
Leadtime:Around 20 working days after order confirmation.
Warranty: 1 year as default, 3 years Max available
Options: Plug&play, Android, PC ，Monitor etc

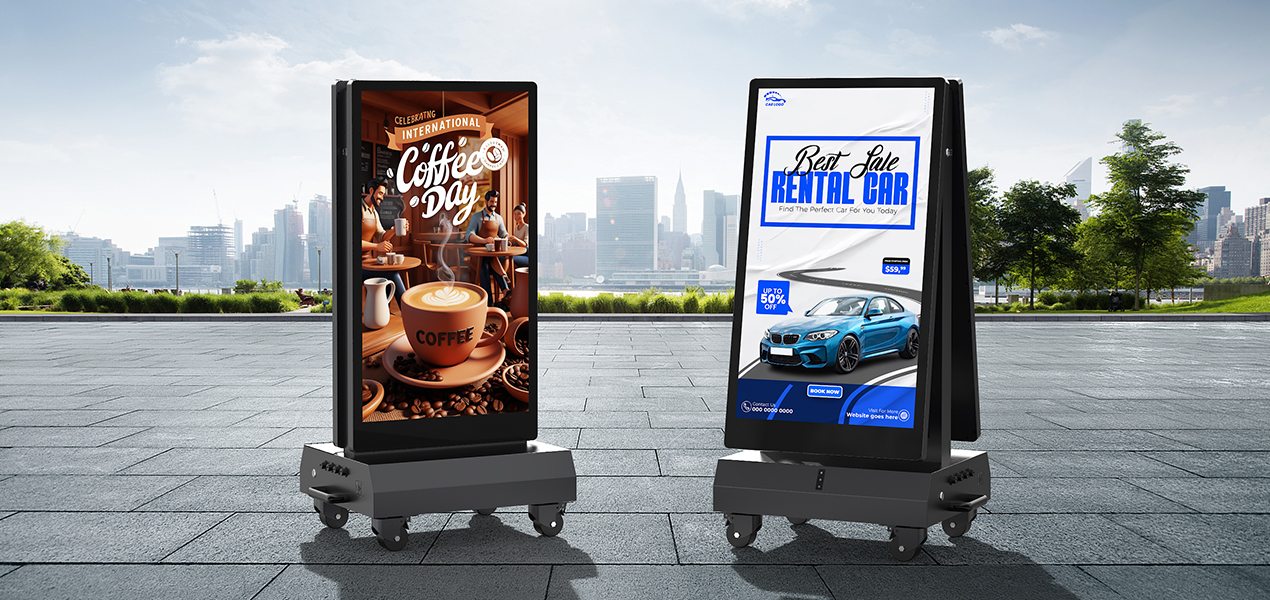

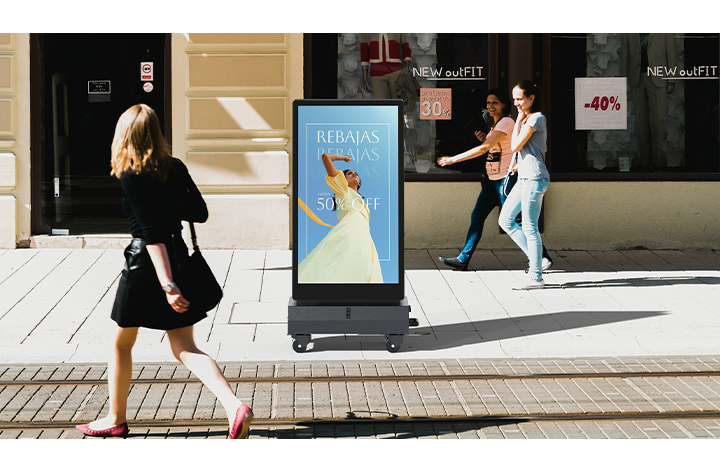

This double-sided outdoor electronic poster display device is equipped with a panel with a brightness of up to 2000 cd/m². Even in direct sunlight, it can ensure clear visibility. It has two high-definition screens, doubling the advertising coverage area. It is suitable for various places such as shopping malls and squares. Installation is simple and no additional operations are required to easily achieve outdoor marketing.

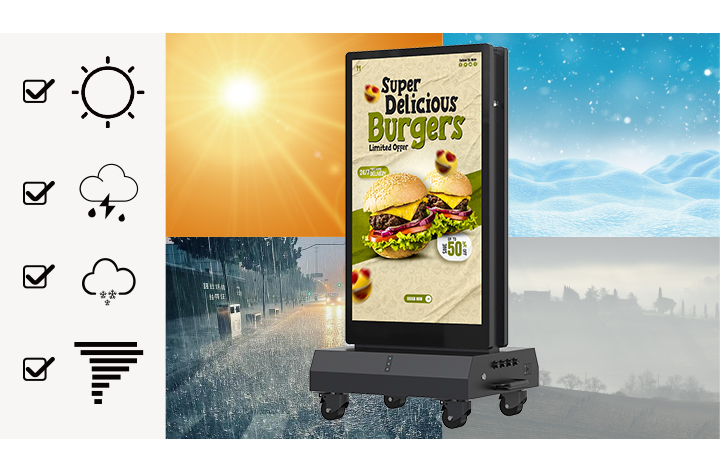

Waterproof Protection
All-Weather Protection!
Its sealed housing has IP55 waterproof, dustproof & corrosion-resistant protection. It runs stably even in harsh weather, widening its outdoor use.
High Brightness
Dual-Sided HD Bright Screens!
It hits 2000 nits brightness, plus a dual-sided FHD screen with 16.7 million colors and a 178° ultra-wide viewing angle—syncing ad delivery to audiences on both sides for doubled communication efficiency.

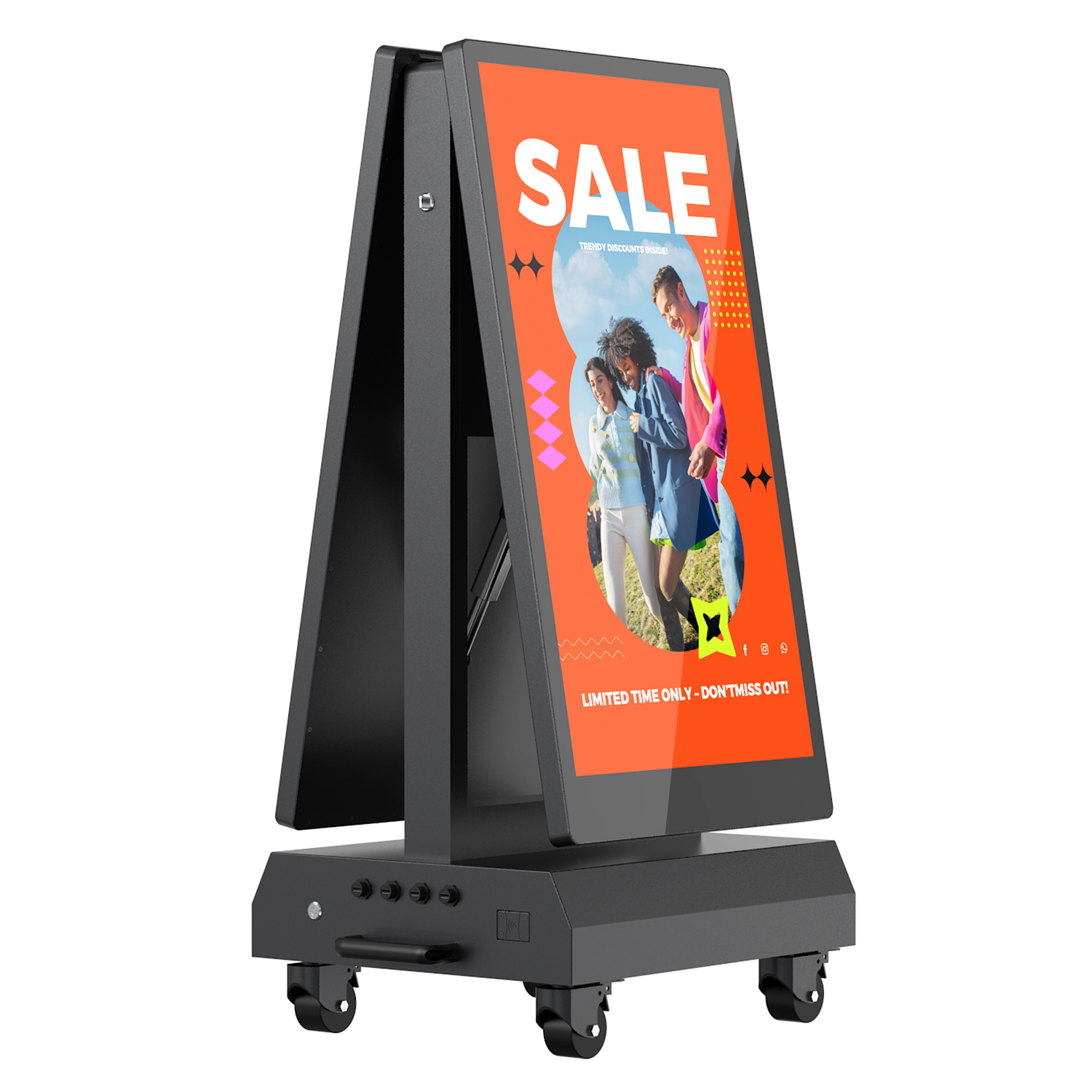

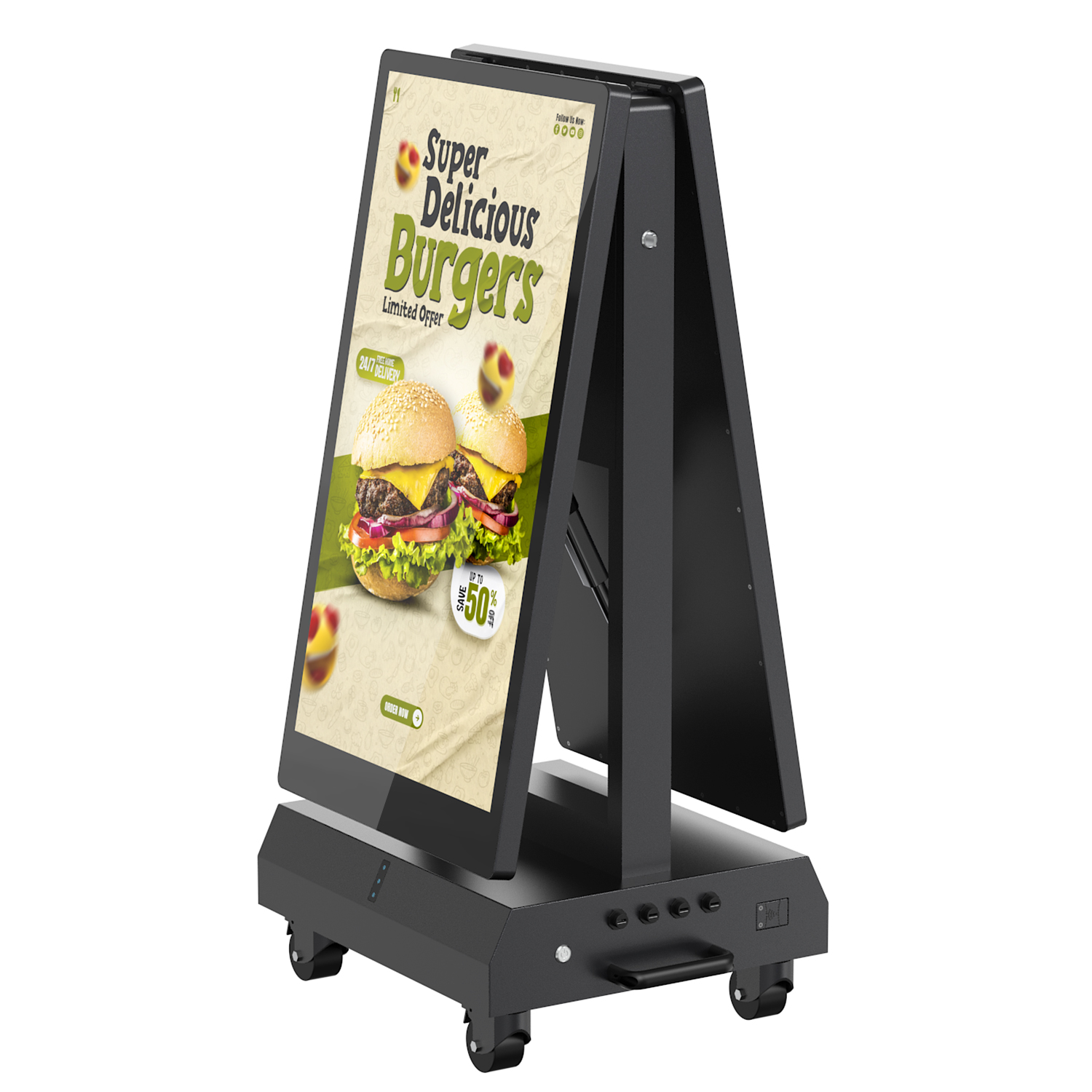

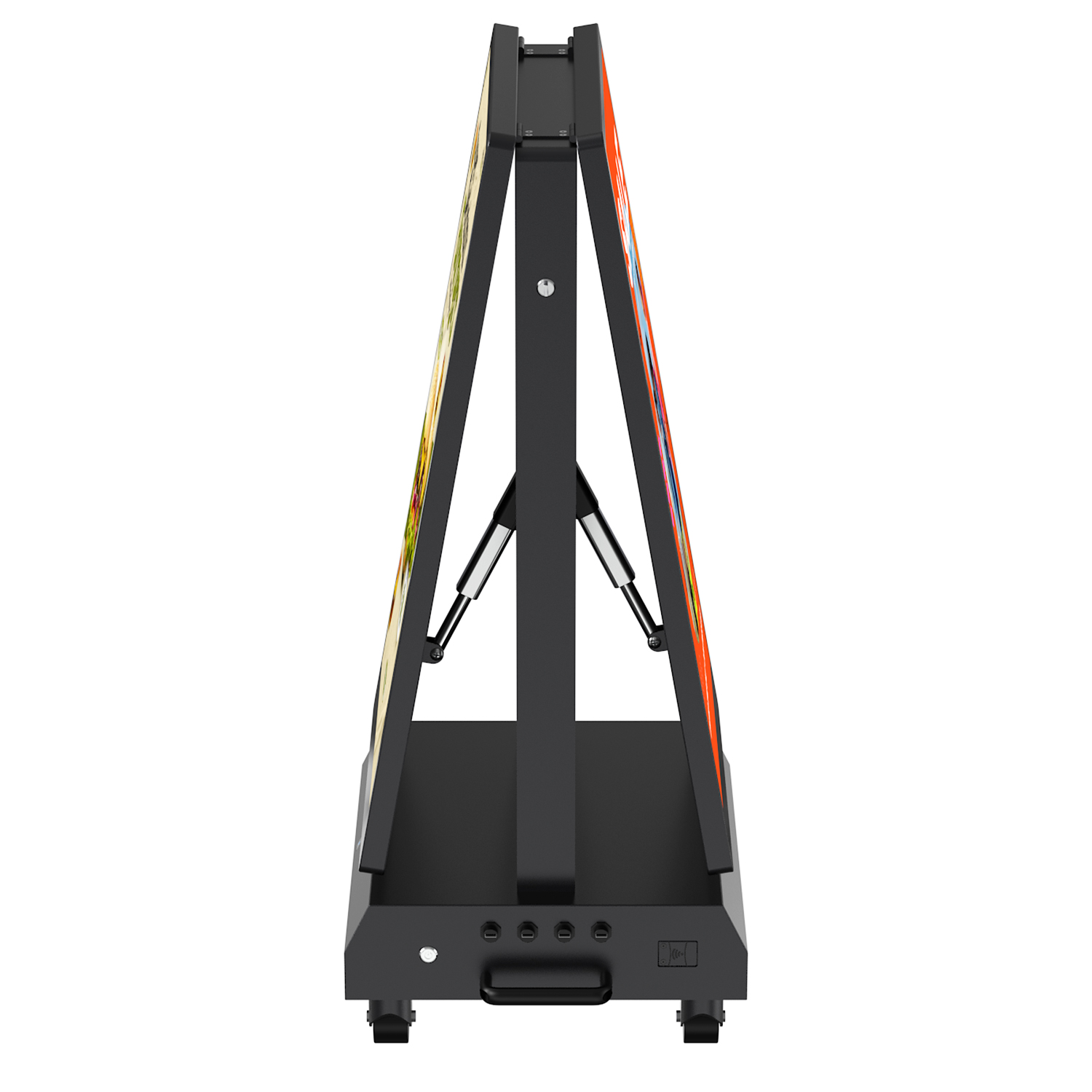

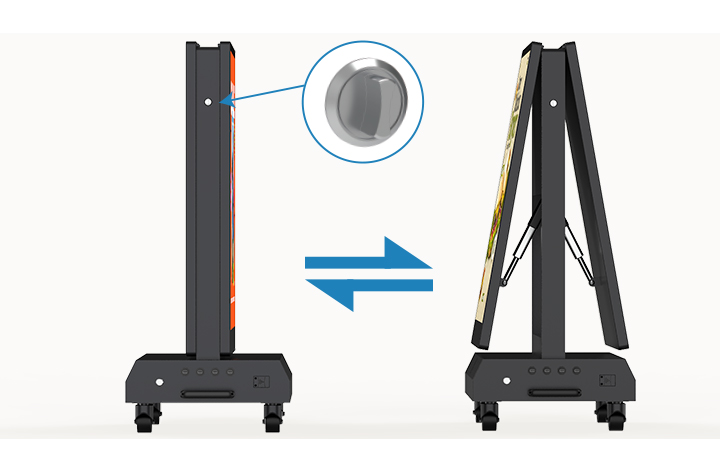

Adjustable angle
Electric Tilt Adjustment!
Independently developed one-click screen angle adjustment function. Adjust the viewing angle freely according to the venue malls, squares ensuring a more comfortable viewing experience for audiences from multiple angles.

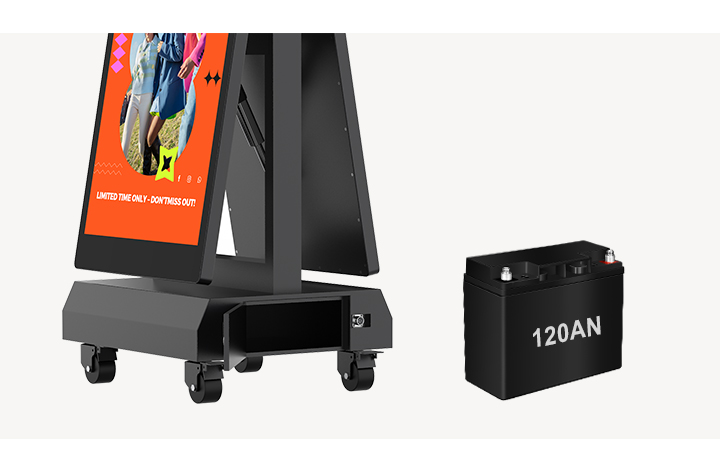

CATL Long-Life Battery
Ultra-Long Battery Endurance!
Powered by CATL’s new-generation ternary lithium battery (120AH capacity, 3024WH energy consumption). Delivers over 10 hours of continuous runtime under normal temperature; meeting all-day outdoor use needs.

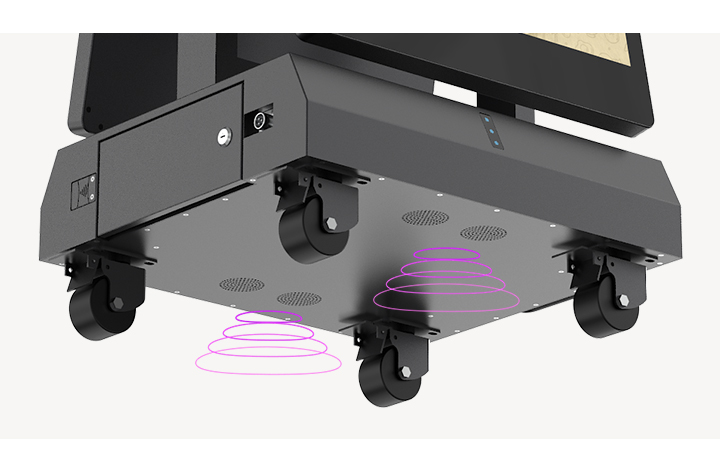

Waterproof Stereo Sound
Stereo Waterproof Speakers!
Equipped with ultra-heavy subwoofers and stereo speakers. Adopts metal wire-drawing + piano baking finish—not only aesthetically pleasing but also IP55-level waterproof. Delivers clear, loud sound to meet the audio needs of open outdoor scenes.

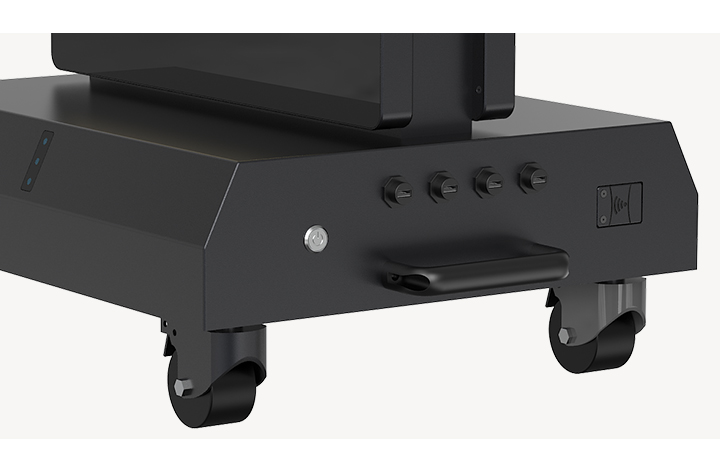

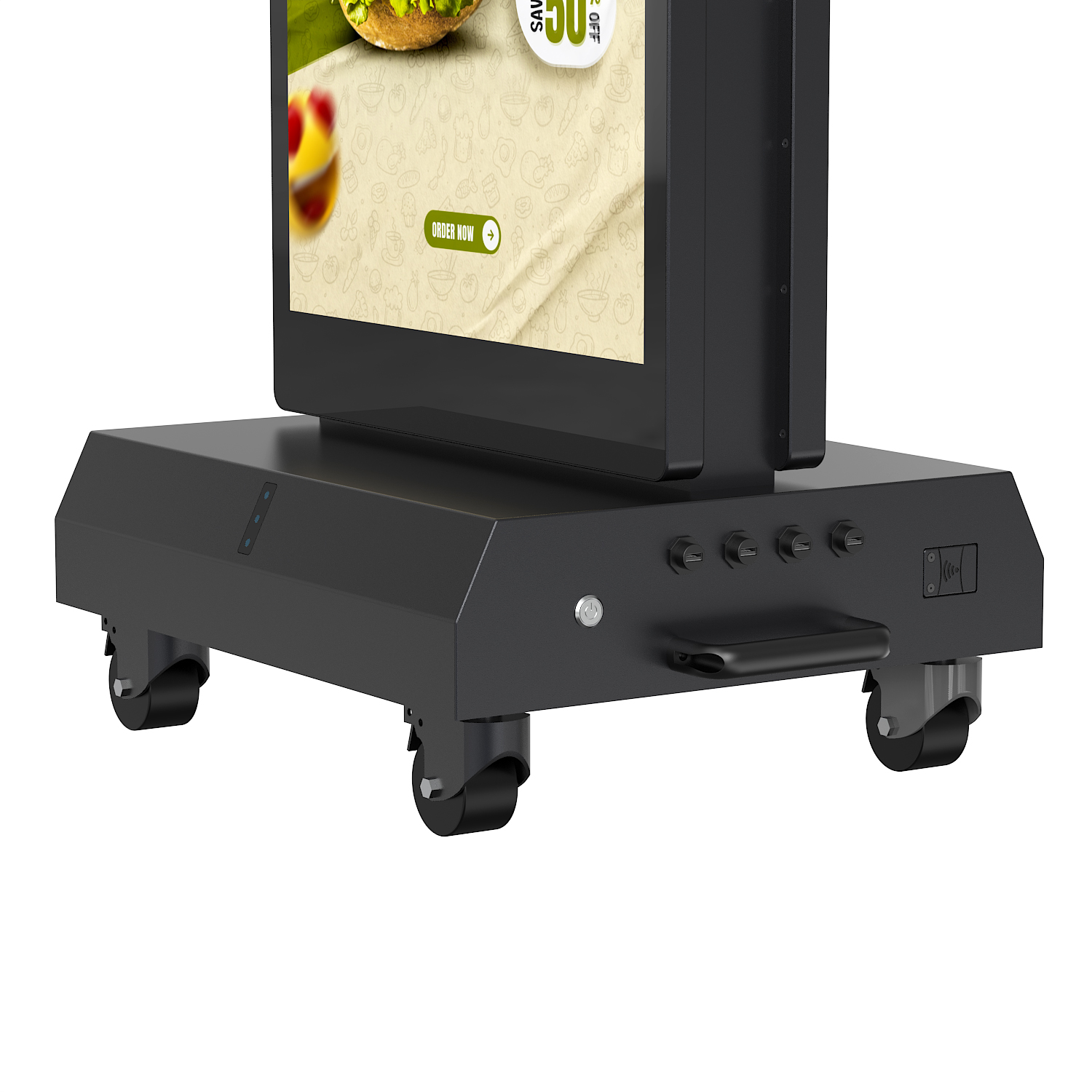

Functional Pedestal
Integrated Functional Pedestal!
The base integrates 4 USB ports, a pull-out battery compartment, charging interface, real-time battery level indicator, power switch, Wi-Fi module, and mobile wheels. All interfaces are fully hidden—enhancing waterproof performance while ensuring easy operation and device mobility.
PANEL new
-
- Screen Size
- 43″/55″
- Response Time
- 6 ms (G to G)
-
- Back Light Type
- E-LED
- Aspect Ratio
- 16:9
-
- Native Resolution
- 1,920 × 1,080 (FHD)
- Refresh Rate
- 60 Hz
-
- Brightness
- 2,000 nits (Typ.)
- Contrast Ratio
- 4,000:1
-
- Viewing Angle (H × V)
- 178° × 178°
- Colour
- 16.7M
SOUND
-
- Speaker (Built-in)
- 10W, 8Ω
BATTERY
-
- Battery technology
- Ternary lithium battery (CATL)
- Working hours
- 12 hours (10% reduction per 5℃ below 0℃)
-
- Battery capacity
- 43″:120AN/55″:150AH
- Input voltage
- 24v
-
- Energy consumption
- 43″:3024WH/55″:3780WH
- Operation Hour
- Up to 10 hours (battery-powered); supports extended use with external power
-
- Off mode
- less than 0.5W
- Smart Sleep mode
- less than 0.5W
ENVIRONMENT CONDITIONS
-
- Operating Temperature
- -20°C ~ 70°C(outdoor)
- Storage Temperature
- -30°C ~ 80°C
-
- Operating Humidity
- 10% ~ 98%
- Storage Humidity
- 10% ~ 98%
SPECIFICATIONS
-
- Processor
- T972 Quad-core (1.9GHz)
- RAM
- 2G
-
- Memory
- 16G EMMC
- USB
- USB2.0 HOST(X2)
-
- LAN
- 10M/100M Ethernet(Network version screen only)
- External memory
- 8G/16G/32G/64G
-
- Multimedia
- Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG)
- Wi-Fi
- 802.11 b/g/n Ethernet (Network version screen only)
-
- Language
- English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic, Polski
- Operating System
- Android 9 (Up to Android 11)
CONNECTIVITY
-
- Input
- HDMI In(HDMI 2.1 4kx2k@60Hz),MIC In,USB2.0(USB OTG A/USB2.0 A) RJ45 In(10M/100M)
- Output
- LVDS Out,V-By-One Out(4kx2k@60Hz), Audio Out(8Ω/10W)
MECHANICAL SPECIFICATION
-
- 43″Dimensions
- 633.8 x 550.0 x 1315.0 mm
- 55″Dimensions
- 790.0 x 550.0 x 1528.2 mm
-
- Appearance color
- Black, white, （Color customizable）
- Protection Glass
- Yes
-
- Mount Type
- Floor standing (with mobile wheels)
- Enclosure Material
- Corrosion-resistant material (waterproof, dustproof)
CERTIFICATIONS
-
- Safety
- CE / ROHS / IP55
Accessories
-
- Quality assurance
- 1 Year (2-3 years optional）
- Type of packaging
- Carton box /honeycomb box + wooden case
-
- Accessories
- Remote control, Adapter, Charger
MOQ is 1 unit for both our standard LCD product and OEM/ODM product.
For standard product: 30% T/T advance, 70% balance before shipment.For ODM/OEM product: 50% T/T advance, 50% balance before shipment.
Our default wararnty time is 1 year, but 2 years and 3 years also available. Please mention the warranty time to our sales before place the order. Free replacement components would be offer during the warranty time. But the freight of replacement would be cover by the client’s side.
All the LCD modules or open cell we are using comes from big manufacturer like Samsung, LG, AUO and BOE.
Standard of the product order quantity is different, digital signage made for commercial purpose it’s support 24/7 working time.
When we are talking panel brand, it means the panel comes from the manufacturer like LG, SAMSUNG, AUO or BOE original, But for most of the sizes they do not have high brightness panel. So, we just buy the OPEN CELL from the original manufacturer and make the high brightness by ourselves. The brand name is the OPEN CELL brand, not the panel brand.
The difference is the application purpose. For commercial standard LCD display products would work up to 50 degree, but industrial standard LCD display products would work up to 80 degree and more.
