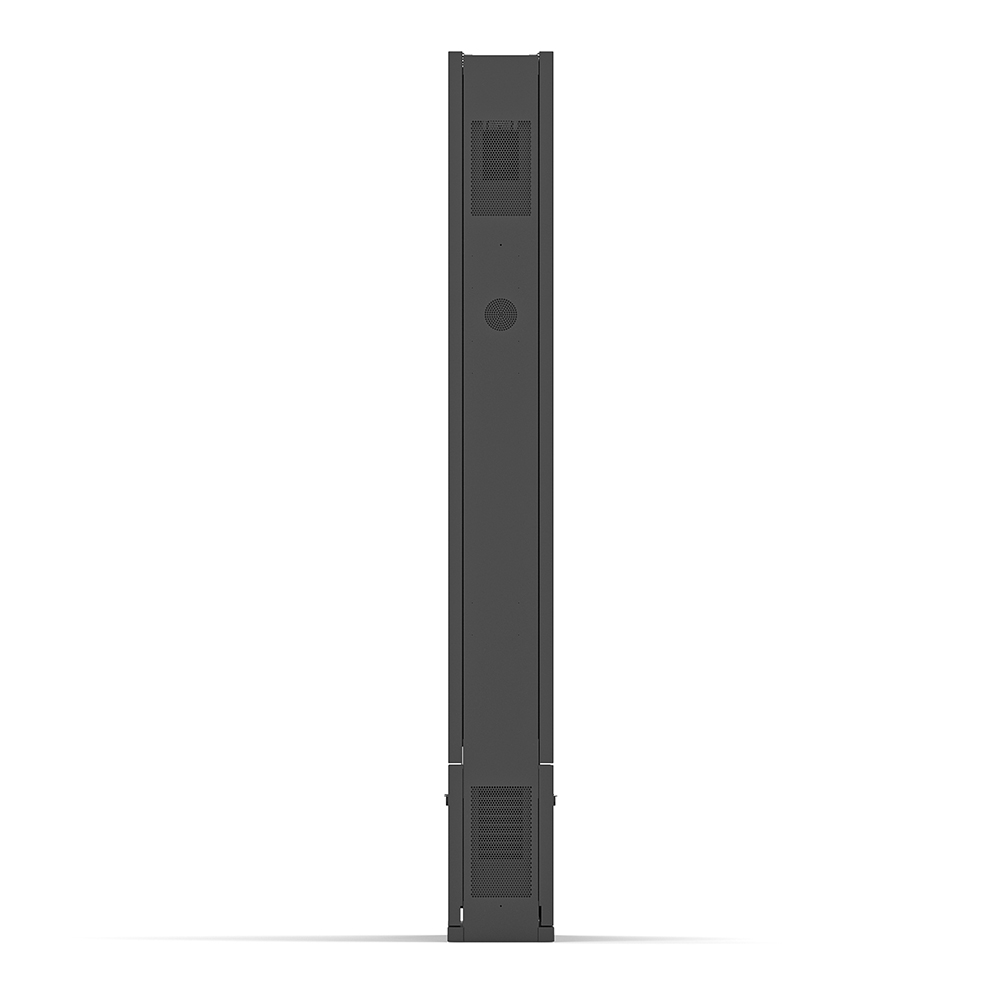

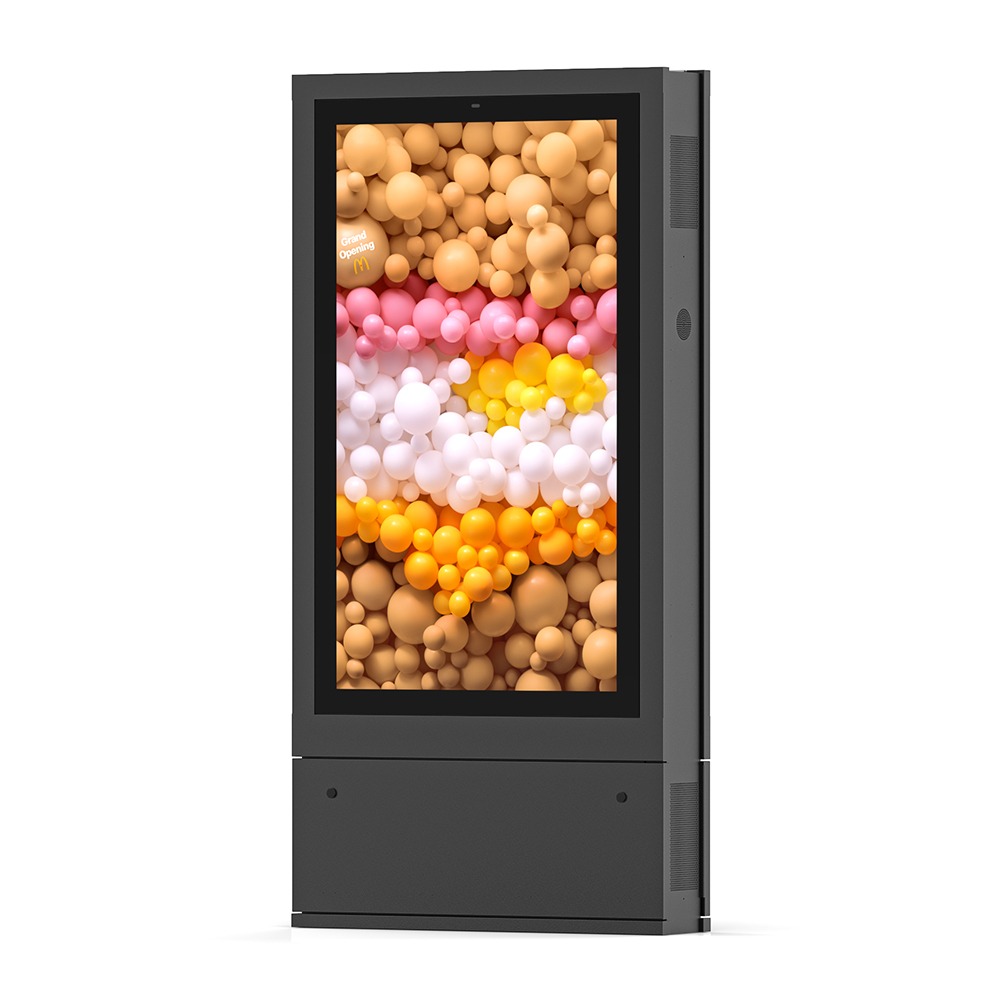

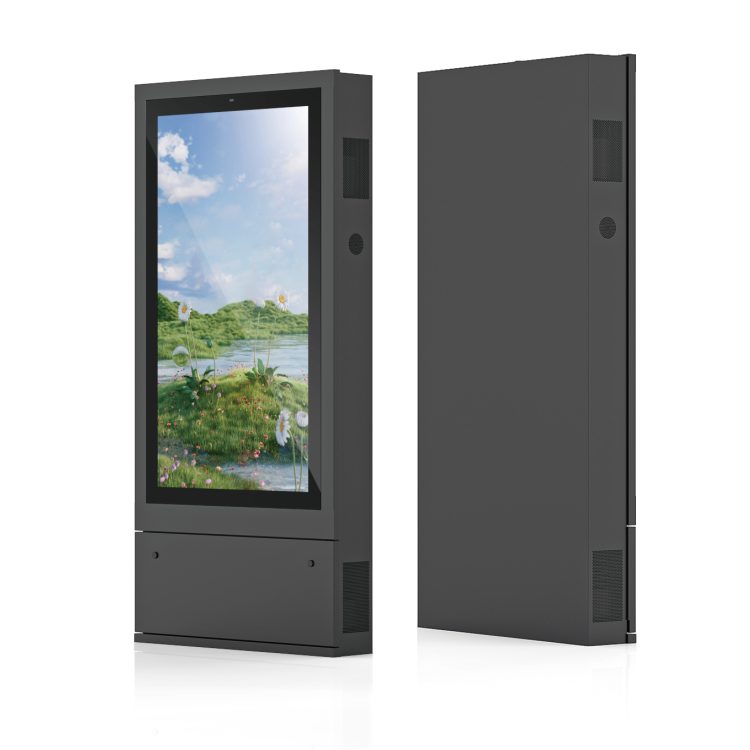

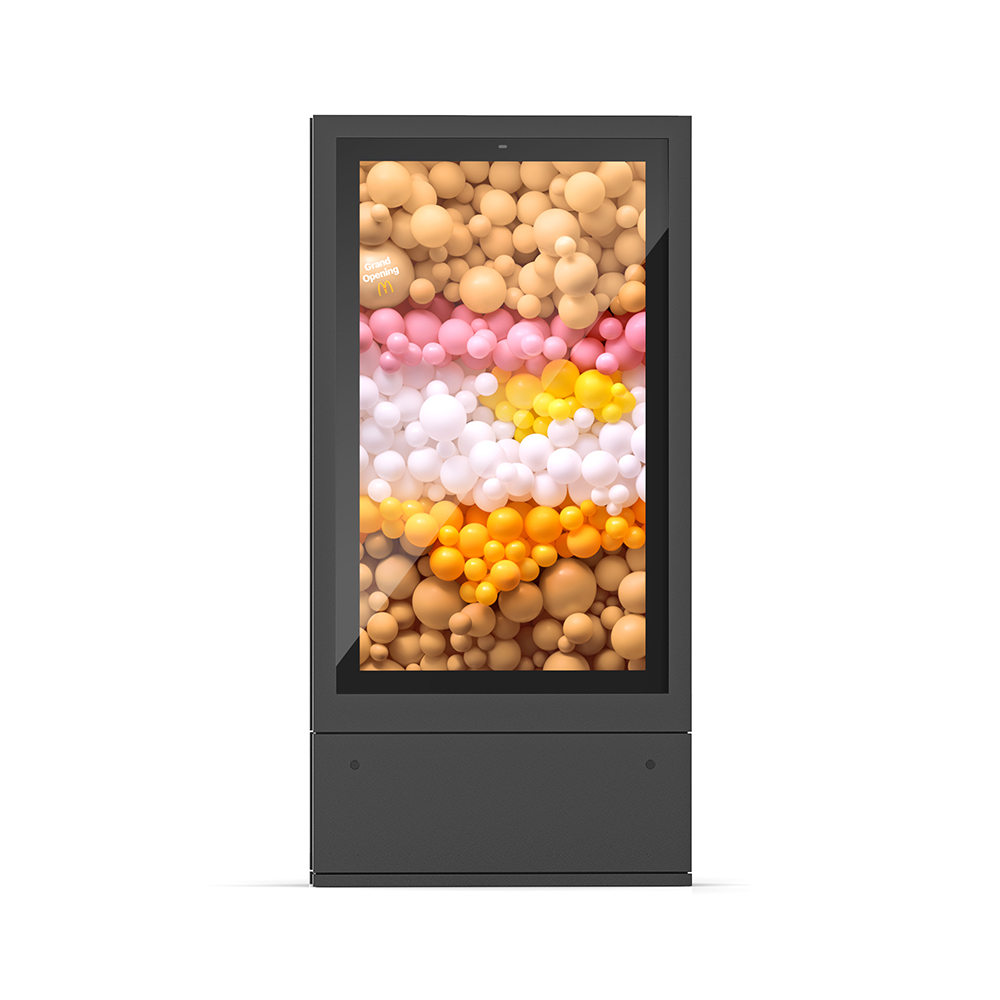

Double-sided Outdoor Kiosk

Double-sided Outdoor Kiosk with Weather Proofing, Security Lock, Built-in Air-conditioning...

Model: No.632
Sizes: 55″

Double-sided Outdoor Kiosk, Brightness is paramount when using outdoor screens these displays use commercial grade Ultra High Brightness panels (3000 cd/m2), more than 5 times brighter than a standard home TV to allow easy readability in direct sunlight. Outdoor enclosures are of mild steel and have thermally toughened glass.

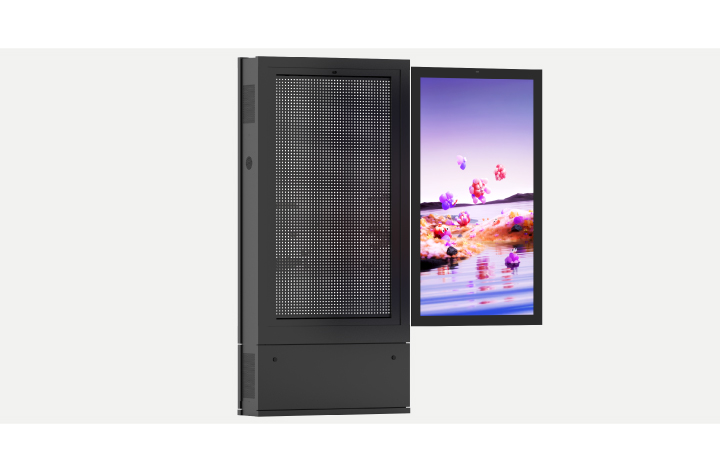

Double-sided Outdoor Kiosk provides a removable base, easy updates, network CMS upgrade, touch screen upgrade, integrated temperature control, waterproof, and sunlight readable screen.

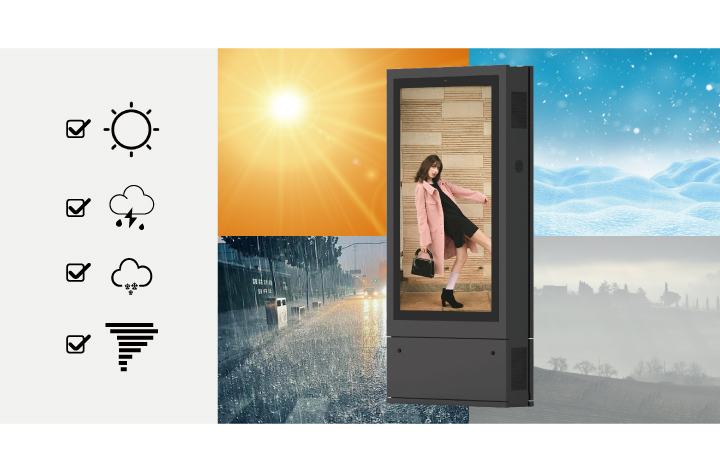

Weather Proofing

All Weather Proofing!

Designed to withstand the elements and are protected against all wet weather conditions and airborne dust particles.

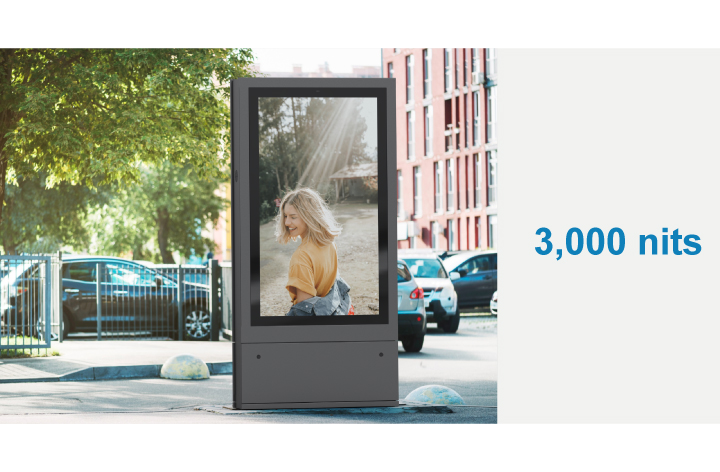

High Brightness

Clear High Brightness Display!

Screen would get up to 3,000 nits as 5 times more than normal display, makes the screen is readable even under the strong sunlight.

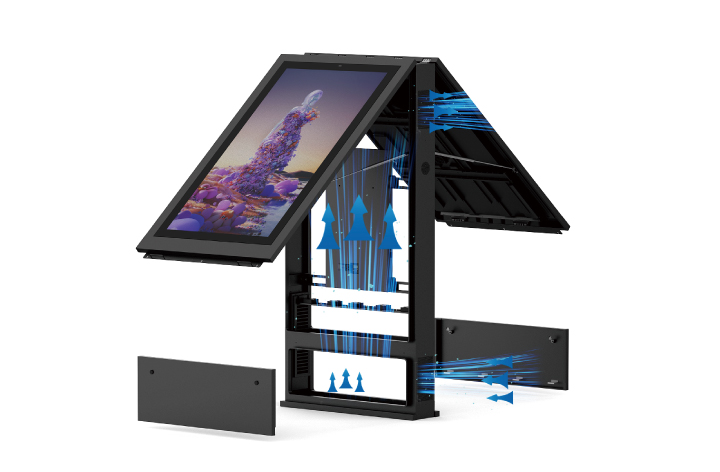

Advanced Temperature Control System

Built-in Air-conditioning!

To maximize the life of the screen, the internal airflow system keeps the screen at the optimal temperature regardless of external conditions The built-in air conditioning can be adjusted so that the screen works in any weather.

CMS

Cloud Based CMS Upgrade!

Player could be upgrade to network CMS if standalone version can’t meet your control demand, via network CMS you can manage the player any time in any place with Internet.

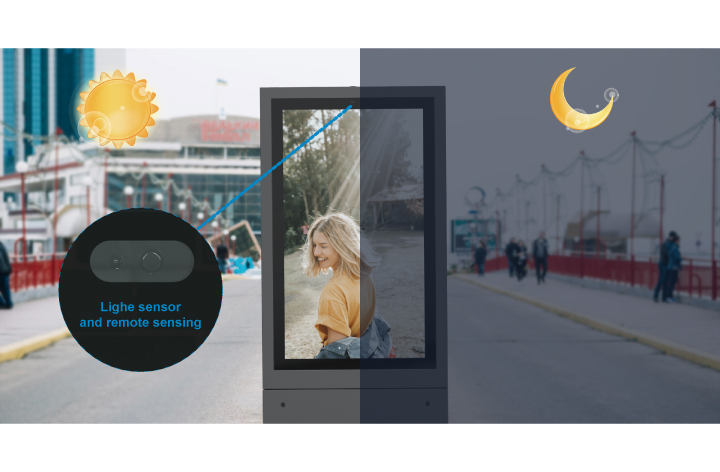

Auto Brightness Control

Brightness would be auto adjust via Ambient Light Sensor!

Ambient light sensor will adjust the screen brightness based on the displays surrounding light levels.

Features

Specifications

Options

Resources

Features

Specifications

Options

Except our standard configuration, we also have below options for you to choose. It also would be welcome, if you have any specified requirements.

When our standard products can not meet your needs, please choose the following solutions:
Monitor Solution	Solution 1
	Chipset	NT68676(UFG)
	OS Language	Chinese, English, French, German, Italian, Spanish, etc
	Resolution Ratio	2084*1152
	Refresh rate	60Hz (Max)
	Video Input	HDMI1.41 DVI1 PC-RGB*1
	Solution 2
	Chipset	MST9U13Q1
	OS Language	Chinese, English, French, German, Italian, Spanish, etc
	Resolution Ratio	3840*2160
	Refresh rate	60Hz (Max)
	Video Input	HDMI1.41 HDMI2.01 DP1.2*1

Standalone Mediaplayer	Video Support	MPG, MPG-1, MPG-4, AVI, MP4, DIV, TS, TRP, WMV, M2TS, MKV, RM, RMVB
	Image Support	JPEG, BMP, PNG
	Audio Support	MP3, WMA
	Resolution Ratio	1920 x 1080 @60Hz (Max)
	Color Depth	24bit (Max)
	Frame Rate	30frm/s (Max)
	Code Stream	USB2.0 device: 30Mbit/sec (Max)
	Sampling Rate	32KHz, 44.1KHZ, 48KHz, 96KHz
	Bit Rate	32kbps to 448kbps
	Input	USBx1, HDMIx1, SD card Socketx1

Android Solution	Solution 1
	Processor	RK3368, Octa-core ARM-A53 (1.5GHz)
	RAM	2GB
	Media Resolution	Maximum support 3840*2160
	LAN	10M/100M Ethernet(Network version screen only)
	External memory	8GB SD card(up to 32G)
	Multimedia	Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG)
	Operating System	Android 7.1.2
	Solution 2
	Processor	RK3288, Quad-core ARM-A17, 1.8GHz
	RAM	4GB
	Media Resolution	Maximum support 3840*2160
	LAN	10M/100M Ethernet(Network version screen only)
	External memory	8GB SD card(up to 32G)
	Multimedia	Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG)
	Operating System	Android 7.1.1
	Solution 3
	Processor	RK3399, Six-core dual-core ARM-A53, 2.0GHz
	RAM	4GB
	Media Resolution	Maximum support 3840*2160
	LAN	10M/100M Ethernet(Network version screen only)
	External memory	8GB SD card(up to 32G)
	Multimedia	Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG)
	Operating System	Android 9.0
	Solution 4
	Processor	T972 quad-core A55, main frequency up to 1.9GHz
	RAM	2GB（1G/4G Optional）
	Media Resolution	Maximum support 3840*2160
	LAN	One, 10M/100M adaptive Ethernet
	Built-in memory	16GB（16/32/64GB Optional)
	Multimedia	Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG)
	Operating System	Android 9.0

PC Solution	Processor	Intel i5 (4th generation) Processor
	RAM	4GB / 8GB
	Hard disk	128G / 256G
	Mother Chipset	Intel H81 chipset, Sandy Bridge
	Video Chipset	Intel HD Graphics, Shared memory
	Audio Chipset	Intel HD audio
	OS	Optional for Windows (unactivated), Linux
	I/O ports	4xUSB 2.0, 1xRJ-45, 1×3.5mm jack plug, 1xHDMI, 1xVGA, 1xDC 12V

Resources

Related Products

Outdoor Open Frame High brightness Display

Hot Sales Products

Subscribe us to get the best special offers, exclusive discounts, new product announcements, our latest technology insights, special events and many more exciting information.

Specifications
Model			No.632
Panel	Display Size(inch)		43″ to 86″
	Resolution		3840*2160
	Active Display Area(mm)		1209.6 x 680.4
	Aspect Ratio		16:09
	Brightness(cd/m2)		3000 nits
	Contrast Ratio(Typ.)		5000:1
	Viewing Angle(H/V)		178/178
	Color		16.7M
	Response Time(G-to-G)		6ms
	Operation Hour		24/7
Sound	Loud Speaker		5W, 8Ω (2 sets)
Power	Type		Internal
	Power Supply		AC 100 – 240 V~ (+/- 10 %),50/60 Hz
	Power Consum ption	Max[W/h]	150
		Sleep mode	less than 0.5W
		Off mode	less than 0.5W
Mechanical Spec	Protection Glass		Yes
	Stand Type		Foot Stand
Environmental	Screen Working Temperature		-10°C ~ 80°C
	Operating Environment Temperature		-10°C ~ 50°C
	Operating Humidity		10% ~ 80 %
	Storage Humidity		5% ~ 95%
	Cooling System		Air Condition
	Hypothermia protection		Heater (aluminium sheet warmer) (Optional)
OS	Android Media Player	Processor	Rockchip ® 3368 (1.8GHz, octa core)
		RAM	2G
		Flash	8G EMMC
		USB	USB2.0 HOST(X2)
		LAN	10M/100M Ethernet(Network version screen only)
		External memory	8GB SD card(up to 32G)
		Multimedia	Video(MPG,AVI,MP4,RM,RMVB,TS),Audio(MP3,WMA),Image(JPG,GIF,BMP,PNG)
		Media Resolution	3840*2160
		Wi-Fi	802.11b/g/n Ethernet(Network version screen only)
		Operating System	Android 7.1
Certification	Safety		CE ROHS IP65
Accessories	Included		Scheduling software, Remote control, Key, Power cable, SD card
	Quality assurance		1 year (2-3 years optional）
	Type of packaging		Carton box /honeycomb box + wooden case
